datasheetSmart pallet scale EPWL with Neutron
Regular price:
€1,859.28
€1,524.00 excl. VAT
Available, delivery time: 3-4 weeks
Product number:
EPWL
Product information "Smart pallet scale EPWL with Neutron"
600 / 1,500 / 2,000 kg · 0.2 / 0.5 / 1 kg · 1260×800×85 mm · Neutron included

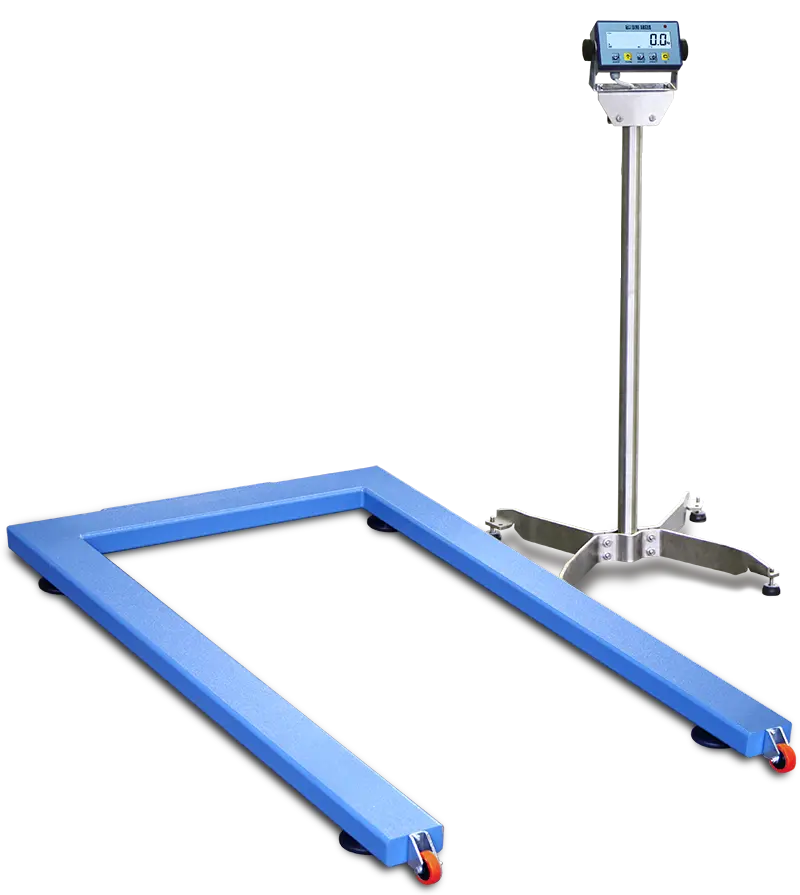

EPWL Smart Pallet Weighing Scale with Neutron
A low-profile pallet weighing scale for warehouses, logistics and production, combining fast pallet weighing with Neutron included for Scale Monitor, cloud connectivity and direct integration with business and automation systems.
Triple-range capacity 600 / 1,500 / 2,000 kg with 0.2 / 0.5 / 1 kg readout. Designed for internal industrial weighing and easy use with hand pallet trucks.
Fast pallet weighing where the work happens
EPWL is built for fast weighing of Europallet loads without moving goods to a distant fixed scale. The painted steel structure includes wheels and a transport handle, while the weight indicator can be positioned to suit the workstation.
For distributed loads on a Europallet, Dini Argeo specifies ±1 kg accuracy for the internal-use version.
Business benefits
Reduce pallet handling
Weigh pallets directly in receiving, dispatch or production instead of routing them through a separate weighing area.
Simple operator workflow
A 25 mm backlit LCD and waterproof 5-key keypad keep everyday weighing straightforward.
Portable installation
Transport wheels, handle and flexible indicator mounting make EPWL easy to position around warehouse and production areas.
Digitize weighing data
Neutron turns EPWL into a connected weighing point for traceability, reporting and integration with warehouse and production systems.
Neutron included
Connect pallet weighing to cloud, ERP and automation
The included Neutron communication platform connects EPWL to Scale Monitor and can make weighing data available to ERP, WMS, MES, databases, PLC, SCADA/HMI, local server applications, private brokers and custom software.
| Cloud and IoT | MQTT, MQTTS, WebSocket, WSS, REST API, HTTP/HTTPS, TCP/IP |
| Industrial automation | Modbus TCP, Modbus RTU, RS-232, RS-485, UART, TCP/IP |
| Wireless and network | Wi-Fi, WPA2, WPA3, Wi-Fi Enterprise, Bluetooth Low Energy, optional Ethernet |
For IT teams and system integrators
EPWL uses a standard RS-232/C interface on the indicator, while Neutron provides the integration layer for Scale Monitor, ERP/WMS/MES, PLC/SCADA, databases and custom applications.
Technical specifications
| Capacity | 600 / 1,500 / 2,000 kg triple range |
| Readout | 0.2 / 0.5 / 1 kg |
| Dimensions | 1260 × 800 × 85 mm |
| Structure | Painted steel with adjustable feet, level bubble, wheels and transport handle |
| Load cells | 4 nickel-plated steel Dini Argeo load cells, IP67 |
| Indicator | ABS IP54, 25 mm backlit LCD, 5-key waterproof keypad |
| Indicator cable | 3 m |
| Power | 4 × AA batteries or 5–12 Vdc external supply |
| Operating temperature | -10 to +40 °C |
| Legal for trade | No – use EPWL-M for approved applications |
Bring pallet weighing into your digital workflow
For Neutron, Scale Monitor or system integration support, contact us.
Contact us for integration supportLogin
No reviews found. Share your insights with others.
Documents
CloudScale Neutron – User Manual
English installation, configuration, calibration and operation manual for CloudScale Neutron devices.
manualFAQ
What are the EPWL weighing ranges and readouts?
EPWL uses a 600 / 1,500 / 2,000 kg triple range with 0.2 / 0.5 / 1 kg readout. The weighing structure measures 1260 × 800 × 85 mm and is intended for internal industrial weighing.
EPWL
Is EPWL legal for trade?
No. The EPWL version is intended for internal industrial weighing. For approved legal-for-trade pallet weighing, use the EPWL-M version.
EPWL
How is EPWL used in a warehouse?
EPWL is a low-profile U-shaped pallet scale designed for easy access with hand pallet trucks. It is suitable for receiving, dispatch, production, packaging, inventory and pallet weight control workflows.
EPWL
What does the included Neutron add to EPWL?
Neutron turns EPWL into a connected pallet weighing point. It can make weighing results available to Scale Monitor, ERP, WMS, MES, databases, PLC/SCADA environments, local server applications and custom software, helping reduce manual data entry and improve traceability.
EPWL
Which communication and integration options does Neutron support?
Neutron supports MQTT, MQTTS, WebSocket, WSS, REST API, HTTP/HTTPS, TCP/IP, Modbus TCP, Modbus RTU, RS-232, RS-485, UART, Wi-Fi, WPA2, WPA3, Wi-Fi Enterprise, Bluetooth Low Energy and optional Ethernet.
Neutron integration
Can weighing data be integrated with ERP, WMS, MES, PLC or SCADA systems?
Yes. Neutron can make weighing data available to ERP, WMS, MES, PLC, SCADA, HMI, databases, local servers and custom applications using supported communication interfaces and protocols.
Neutron integration
Skip product gallery
Recommended accessories
AISI 304 stainless-steel indicator column 917 mm – CSP38I-1
AISI 304 stainless-steel column, 450 × 450 mm base, height 917 mm, Ø 38 mm. Suitable for indicators from the Dini Argeo and Scale House ranges.
Regular price:
€353.80
€290.00
excl. VAT

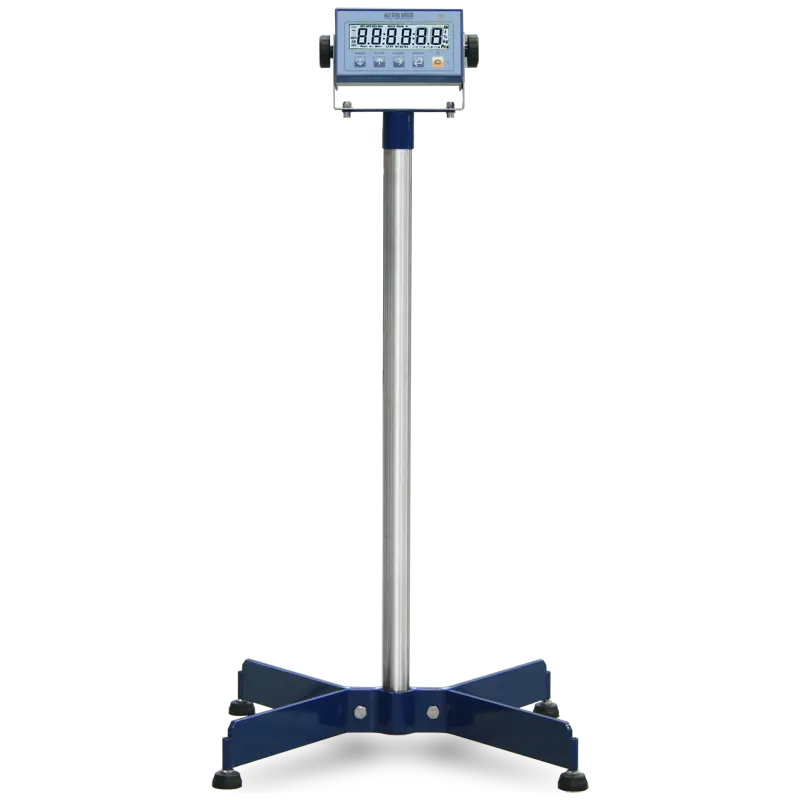

Stainless-steel indicator column 917 mm – CSP38
Stainless-steel column, 450 × 450 mm base, height 917 mm, Ø 38 mm, with painted-steel base. Suitable for indicators from the Dini Argeo and Scale House ranges.
Regular price:
€262.30
€215.00
excl. VAT
Stainless-steel floor indicator column 900 mm – CLD-900
Floor-standing stainless-steel indicator columnCLD-900 Stainless-Steel Column, 900 mmA robust floor-standing column for installing a compatible industrial weighing indicator next to a scale or platform.Stable freestanding...
Regular price:
€134.20
€110.00
excl. VAT

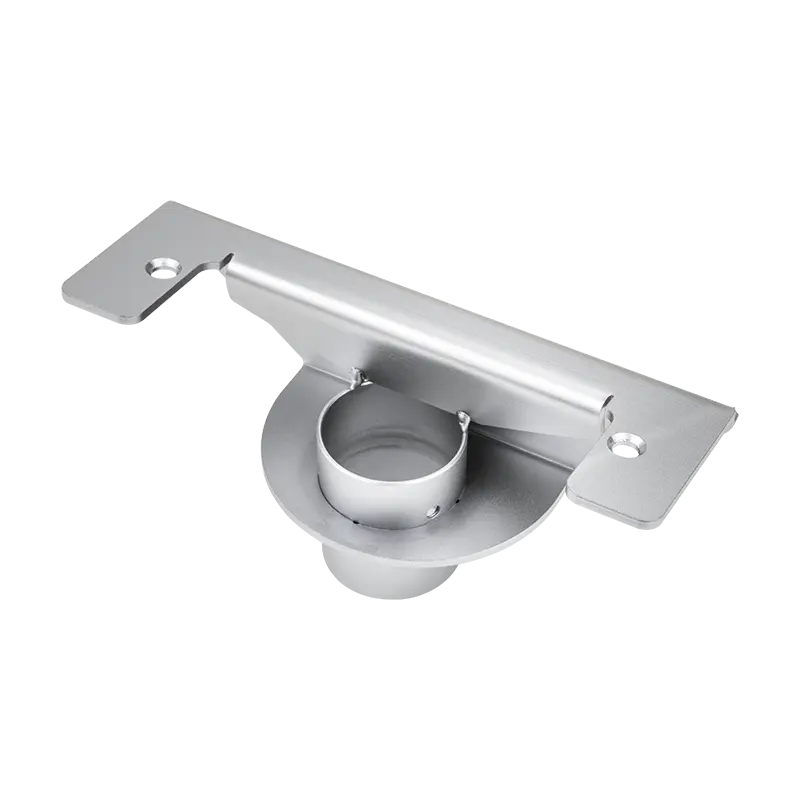

Support bracket for 3590 series indicators – 3590CL
